Trace Analysis Results for Variable p36.schwarz(a174.schwarz)
This text provides more details for variable p36.schwarz(a174.schwarz).
Variable is of type: int
Variable is initialized: yes
Purpose of variable:
The variable describes a state variable, because it changes in value in the trace.
Distribution of Values

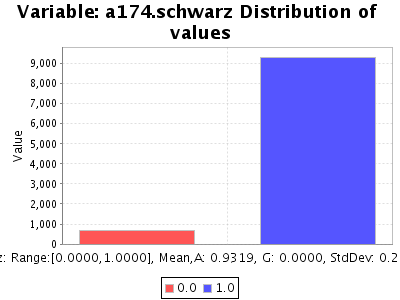

The following figure shows the distribution of values seen for this variable.
Characteristics of this set are:
Range: in {0,1}
Number of value assignments (excluding identity): 525
Total number of values (=#states) considered for statistics: 10001
Arithmetic Mean: 0.93191
Geometric Mean: 0.00000
Standard Deviation: 0.25192
Variance: 0.06346
Kurtosis: 9.76431
Skewness: -3.42963
Sequence of Values
The variable is modified for the first time at event: 32.
The variable is modified the last time at event: 10000.
It ends with a non-increasing sequence starting at event 9977.
Note: an extended trailing sequence of falling values for a variable that accounts for available resources can indicate a partial deadlock situation.

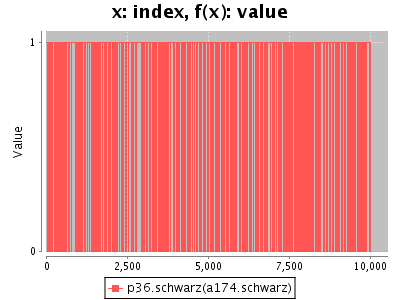

The following figure shows the sequence of values seen in the trace. Note that the horizontal axis considers events and does not(!) reflect time stamps and durations.
State Transformation Functions
The following table shows which actions perform a state transformation to this variable.
