Trace Analysis Results for Variable controllers_working11(sv11)
This text provides more details for variable controllers_working11(sv11).
Variable is of type: int
Variable is initialized: yes
Purpose of variable:
The variable describes a state variable, because it changes in value in the trace.
Distribution of Values

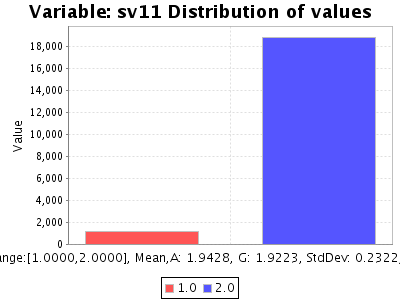

The following figure shows the distribution of values seen for this variable.
Characteristics of this set are:
Range: in {1,2}
Number of value assignments (excluding identity): 2268
Total number of values (=#states) considered for statistics: 19975
Arithmetic Mean: 1.94283
Geometric Mean: 1.92229
Standard Deviation: 0.23218
Variance: 0.05391
Kurtosis: 12.55532
Skewness: -3.81498
Sequence of Values
The variable is modified for the first time at event: 57.
The variable is modified the last time at event: 19966.

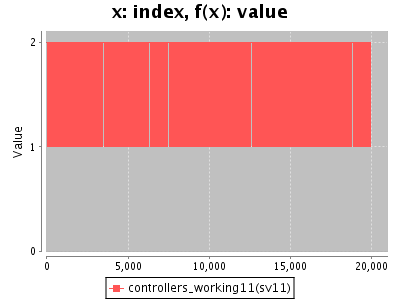

The following figure shows the sequence of values seen in the trace. Note that the horizontal axis considers events and does not(!) reflect time stamps and durations.
State Transformation Functions
The following table shows which actions perform a state transformation to this variable.
