Trace Analysis Results for Variable system_fail33(sv33)

This text provides more details for variable system_fail33(sv33).
Variable is of type: int
Variable is initialized: yes
Purpose of variable:
The variable describes a state variable, because it changes in value in the trace.

Distribution of Values

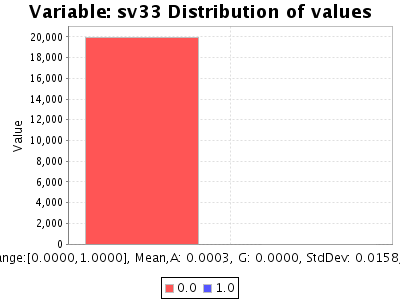

The following figure shows the distribution of values seen for this variable.
Characteristics of this set are:
Range: in {0,1}
Number of value assignments (excluding identity): 10
Total number of values (=#states) considered for statistics: 19975
Arithmetic Mean: 0.00025
Geometric Mean: 0.00000
Standard Deviation: 0.01582
Variance: 0.00025
Kurtosis: 3990.99948
Skewness: 63.18702
Sorry, figure for the caption is missing

Sequence of Values

The variable is modified for the first time at event: 1898.
The variable is modified the last time at event: 18499.

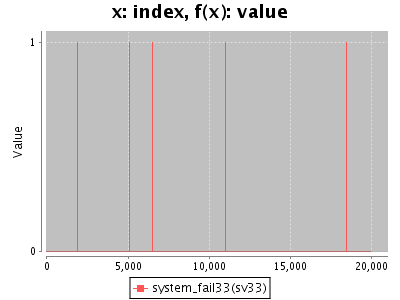

The following figure shows the sequence of values seen in the trace. Note that the horizontal axis considers events and does not(!) reflect time stamps and durations.
Sorry, figure for the caption is missing

State Transformation Functions

The following table shows which actions perform a state transformation to this variable.

ActionOccurrencesState TransformationRemarks
Ac_disk_repair(a6)1091 v'=v Warning: Action performs identity function!
Ac_disk_failure(a7)1091 v'=v Warning: Action performs identity function!
Ac_disk_repair(a9)1130 v'=0*v
Ac_disk_failure(a10)1130non-linear function, increasing: 2, decreasing: 0, identity: 1128, v'=v+c(s) with c(s) in {0,1}
Ac_disk_repair(a12)1095 v'=0*v
Ac_disk_failure(a13)1095non-linear function, increasing: 1, decreasing: 0, identity: 1094, v'=v+c(s) with c(s) in {0,1}
Ac_controller_repair(a15)1134 v'=v Warning: Action performs identity function!
Ac_controller_failure(a16)1134 v'=v Warning: Action performs identity function!
Ac_disk_repair(a20)1118 v'=v Warning: Action performs identity function!
Ac_disk_failure(a21)1118 v'=v Warning: Action performs identity function!
Ac_disk_repair(a23)1147 v'=0*v
Ac_disk_failure(a24)1147non-linear function, increasing: 1, decreasing: 0, identity: 1146, v'=v+c(s) with c(s) in {0,1}
Ac_disk_repair(a26)1118 v'=v Warning: Action performs identity function!
Ac_disk_failure(a27)1118 v'=v Warning: Action performs identity function!
Ac_controller_repair(a29)1065 v'=0*v
Ac_controller_failure(a30)1065non-linear function, increasing: 1, decreasing: 0, identity: 1064, v'=v+c(s) with c(s) in {0,1}
Ac_processor_repair(a32)1089 v'=v Warning: Action performs identity function!
Ac_processor_failure(a33)1089 v'=v Warning: Action performs identity function!

List of Warnings
