Trace Analysis Results for Variable C2InService(C2InService)
This text provides more details for variable C2InService(C2InService).
Variable is of type: int
Variable is initialized: yes
Purpose of variable:
The variable describes a state variable, because it changes in value in the trace.
Distribution of Values

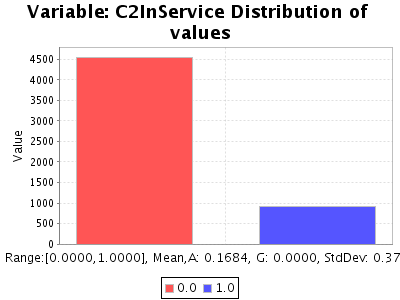

The following figure shows the distribution of values seen for this variable.
Characteristics of this set are:
Range: in {0,1}
Number of value assignments (excluding identity): 1269
Total number of values (=#states) considered for statistics: 5474
Arithmetic Mean: 0.16843
Geometric Mean: 0.00000
Standard Deviation: 0.37428
Variance: 0.14009
Kurtosis: 1.14178
Skewness: 1.77239
Sequence of Values
The variable is modified for the first time at event: 6.
The variable is modified the last time at event: 5471.
It ends with a non-decreasing sequence starting at event 5458.
Note: an extended trailing sequence that is mononotonously growing for a variable that models a buffer can indicate a severe overload or partial deadlock situation.

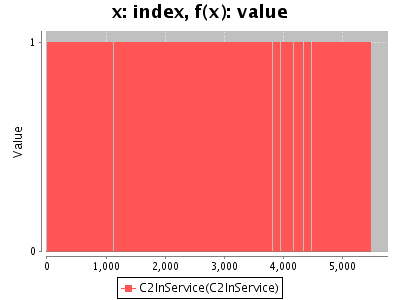

The following figure shows the sequence of values seen in the trace. Note that the horizontal axis considers events and does not(!) reflect time stamps and durations.
State Transformation Functions
The following table shows which actions perform a state transformation to this variable.
List of Warnings
- Type 8: Action C2RestartIfFailed(8) occurs only once, linear state transformation for C2InService(C2InService) is possible but fitting is based on not enough data to be uniquely determined.
